Transparent LED
- Modularized
- Smart
- 160° Wide View Angle
- Light Penetrate
- Dfferent Batches can be mixed to use

Umtech Offers The Best Transparent LED Display Solution In GCC
Transparent LED Screen display Supplier in Dubai

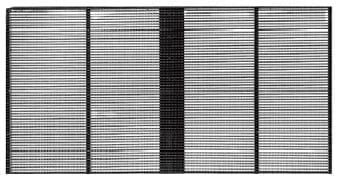

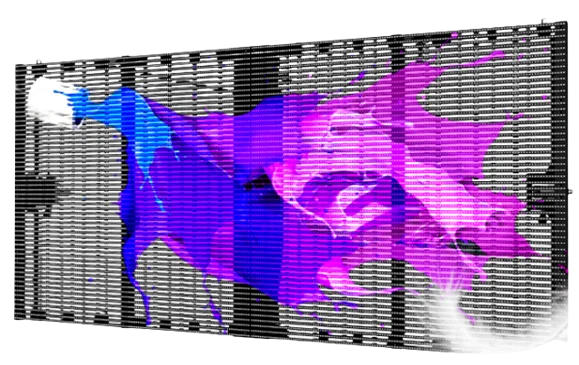

Transparent LED is a type of LED display that is semi-transparent or transparent, meaning it allows some light to pass through it. Specifically designed to capture the audience with its extreme brightness (6,500nits), Transparent LED screens with up to 80% transparency still let light passes into your premises and maintain visual from the inside. The Transparent LED allows you to reach out to your customer with a spectacular large display, without blocking the daylight in your premises.

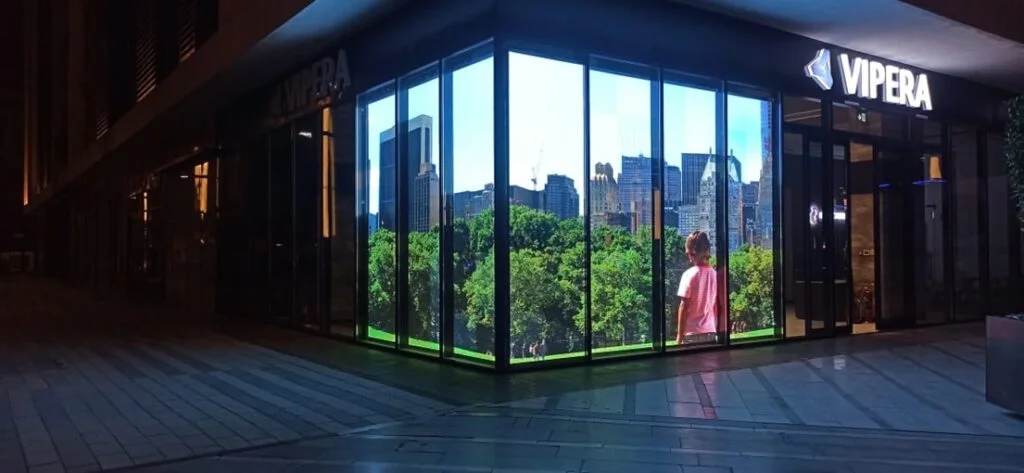

With umtech, it’s time to get creative with your advertising and promotional messaging. The transparent LED technology can be applied to a wide range of applications, including retail displays, window displays, building façade installations, trade shows and events, museum displays, and architectural installations. They can be used to create dynamic, interactive environments and enhance a space’s overall aesthetic appeal.
This technology allows for new design possibilities and seamless integration of digital and physical environments.
Transparent LED Display provides indoor and outdoor use options and can be supplied as flat, curved, or cylindrical transparent LED units. With unique flexibility, our products can be integrated to create inexpensive, effective, Transparent LED Screens that offer your patrons with powerful information.

Features:
- Numerous panels sizes and pixel pitches are available
- Ultra-transparent – Permeability is 60% -90%
- Indoor and Outdoor versions are both available
- Indoor brightness – 1500nits, Outdoor brightness – 5000-5500nits
- Dual-mounting options of either stack mounted or hung
- Ability to produce any size, shape, or configuration
- Lightweight aluminum module frame, lighter and easier to maintain.
- The multi-layer circuit design is adopted to ensure that the current distribution of the lamp
board is uniform and the heat dissipation is fast. - High protection, high waterproof.
- Bracket installation, back strip installation, and the whole screen installation and removal are
fixed and connected by quick bolts, which can be quickly installed. - It is used in stage and stage beauty, auto shows, concert, convention and exhibition center, hotel ,theater, commercial shopping centers, etc.


Specification

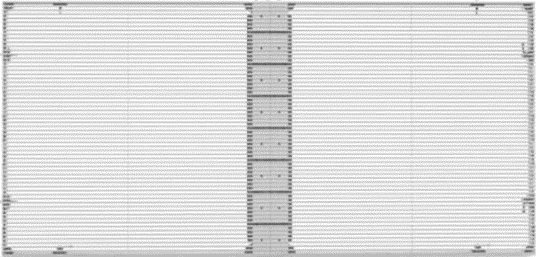

- Cabinet size:500x1000mm
- Pixel pitch:P2.6-5.95mm / P3.9-7.8mm
- Horizontal Viewing Angle:H140°
- Vertical Viewing Angle:H120°
- Grey Level: 12-14 Bit
- Refresh Rate:1920-3840Hz
- Viewing Distance:≥4m
- White Balance Brightness:≥3500cd/㎡
- Continuous Operation Time:≥72hours
- IP Rating:IP20
- Maximum power consumption:800W/㎡
- Average power consumption:260W/㎡


Specification
- Cabinet size:1000x1000mm
- Pixel pitch:P2.6-5.95mm / P3.9-7.8mm
- Horizontal Viewing Angle:H140°
- Vertical Viewing Angle:H120°
- Grey Level: 12-14 Bit
- Refresh Rate:1920-3840Hz
- Viewing Distance:≥4m
- White Balance Brightness:≥3500cd/㎡
- Continuous Operation Time:≥72hours
- IP Rating:IP20
- Maximum power consumption:800W/㎡
- Average power consumption:260W/㎡
Specification
- Cabinet size:700x1000mm
- Pixel pitch:3.91-7.82mm
- Horizontal Viewing Angle:H140°
- Vertical Viewing Angle:H120°
- Grey Level: 12-14 Bit
- Refresh Rate:1920-3840Hz
- Viewing Distance:≥4m
- White Balance Brightness:≥3500cd/㎡
- Continuous Operation Time:≥72hours
- IP Rating:IP20
- Maximum power consumption:800W/㎡
- Average power consumption:260W/㎡


Technical Parameters
| Model No | P3 | P3.9 | P5 | P7.8 | P10 | P16 | P20 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 3.12-6.25 mm | 3.9-7.8 mm | 5.2 mm | 7.8 mm | 10.4 mm | 15.6 mm | 20 mm |
| Module Siz | 1000x500x30 mm | 1000x500x30 mm | 1000x500x30 mm | 1000x500x30 mm | 1000x500x30 mm | 1000x500x30 mm | 1000x500x30 mm |
| Brightness | 6000 nits | 6000 nits | 6000 nits | 6000 nits | 6000 nits | 5500 nits | 5500 nits |
| Transparency | >73% | >76% | >73% | >81% | >84% | >87% | >90% |
| Module Resolution | 320x80 px | 256x64 px | 190x80 px | 128x64 px | 100x50 px | 64x32 px | 48x24 px |
| Resolution | 51,200 dot/m² | 32,768 dot/m² | 32,026 dot/m² | 16,384 dot/m² | 9,216 dot/m² | 4,026 dot/m² | 2,304 dot/m² |
| Ingress Protection | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Viewing Angle | 120º | 120º | 120º | 120º | 120º | 120º | 120º |
| Gray Scale | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits |
| Minimum Viewing Distance | 3 meters | 3 meters | 5 meters | 8 meters | 10 meters | 15 meters | 20 meters |
| Video Signal Input | HDMI/DVI | HDMI/DVI | HDMI/DVI | HDMI/DVI | HDMI/DVI | HDMI/DVI | HDMI/DVI |
| Temperature range | - 10 to 40º C | - 10 to 40º C | - 10 to 40º C | - 10 to 40º C | - 10 to 40º C | - 10 to 40º C | - 10 to 40º C |
| Power Supply | UL Certified | UL Certified | UL Certified | UL Certified | UL Certified | UL Certified | UL Certified |
| Av. Power Consumption | 260 w/m² | 260 w/m² | 260 w/m² | 260 w/m² | 260 w/m² | 260 w/m² | 260 w/m² |
| Operating Life | 100,000 Hour | 100,000 Hour | 100,000 Hour | 100,000 Hour | 100,000 Hour | 100,000 Hour | 100,000 Hour |
