Indoor Fixed LED Display Series
- Best quality and Brightness.
- Excellent picture Clarity.
- Precise colour calibration & integration.
- Energy-saving design.
- Ultra-wide viewing angle
- Easy Maintenance.
- Quick installation
- High grayscale
- High contrast
- Safe and reliable
- Seamless splice
- Remote Monitoring.
Immerse your indoor space in brilliance with our high-resolution LED screens for captivating visual experiences | 3 reason why
Indoor LED Screen Supplier in Dubai
Welcome to umtech, where we specialize in indoor LED screens that take your visual experience to the next level. Our cutting-edge LED display solutions bring vibrant colors, exceptional clarity, and precise detail to transform any indoor space.
Our high-resolution indoor LED screens deliver stunning image quality, ensuring every detail is rendered with breathtaking precision. Whether you’re showcasing advertisements, captivating audiences at events, or creating an immersive atmosphere, our LED screens leave a lasting impact.
Installing our indoor LED screens is a breeze, thanks to their seamless integration and user-friendly design. Whether you need a video wall, curved display, or custom configuration, our expert team will bring your vision to life.
Performance and reliability are our top priorities. Our indoor LED screens are built with top-quality components and advanced technologies, ensuring exceptional performance and longevity. Energy efficiency features and intelligent cooling systems optimize operation while minimizing power consumption and heat generation.
Managing content is easy with our user-friendly software, allowing you to control and schedule updates effortlessly. Whether you’re displaying dynamic advertising campaigns or informative messages, our displays offer flexible content management options.
We pride ourselves on providing comprehensive support and service to our clients. From initial consultation to installation and ongoing maintenance, our dedicated team is here to assist you every step of the way. With prompt customer support, regular maintenance packages, and proactive troubleshooting, we ensure your indoor LED screen operates flawlessly.
Elevate your indoor environment with our state-of-the-art LED screens. Contact us today to discuss your requirements and explore our wide range of indoor LED display solutions. Discover the limitless possibilities of transforming your space into an immersive visual showcase with umtech.

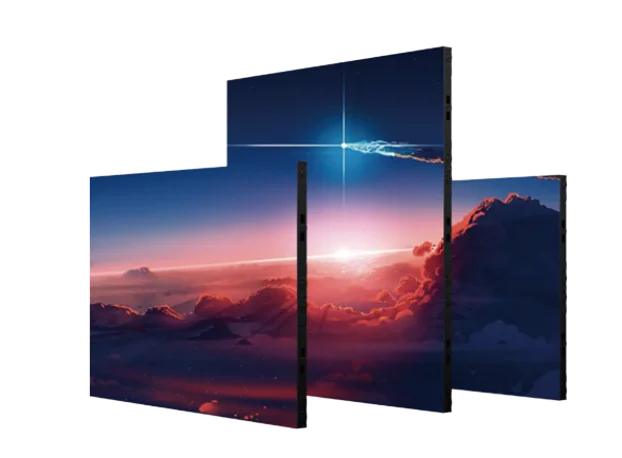

Indoor LED Screen Specification

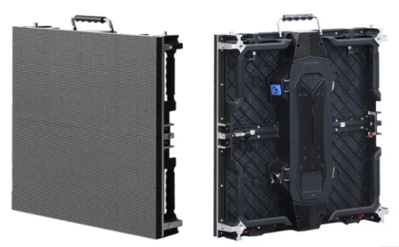

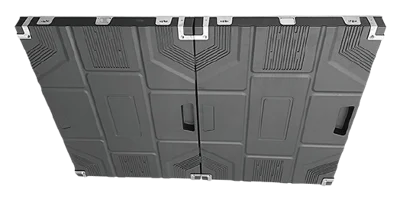

SPECIFICATION (Conventional Series)
Cabinet size：640x480mm
Module size：320x160mm
Pixel pitch(mm): P1.25/P1.538/P1.667/P1.839/P1.86/P2/P2.5/P3.076
Use environment: Indoor

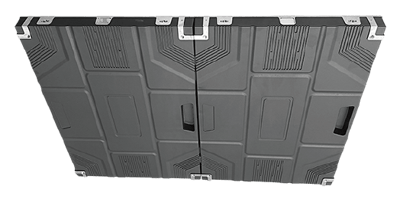

SPECIFICATION
Cabinet size：480x480mm
Module size：240x240mm
Pixel pitch(mm): P1.5/P1.667/P1.875/P2.5/P3.91
Use environment: Indoor

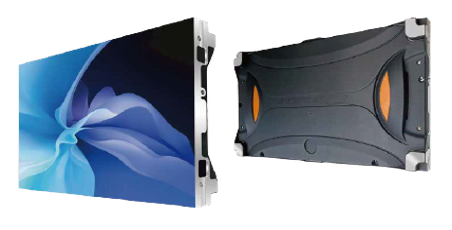

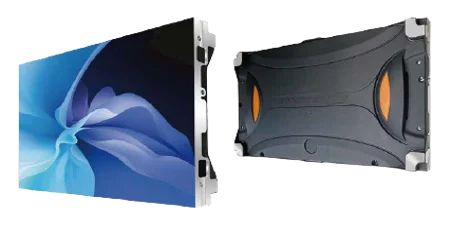

SPECIFICATION（Ultra-thin Series）
Cabinet size: 600×337.5mm
Module size：300×168.75mm
Thickness :31mm
Weight :5.2kg
Pixel pitch(mm): P0.9375/P1.25/P1.56/P1.875/P2.34
Use environment: Indoor

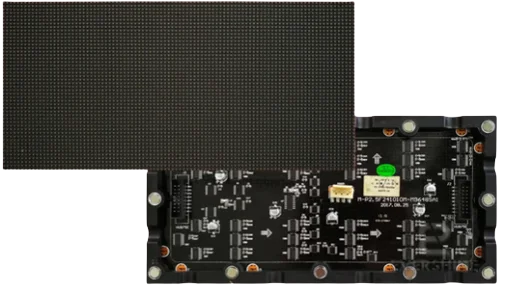

Indoor Rigid Module Specification
Modules are rigid and light in weight, per single LED only 1.0mg.
Great White balance brightness for a better display effect.
All black RGB package, matte surface, softer screen glow
Application
Pixel pitch(mm): P1.25/P1.538
P1.667/P1.839/P1.86/P2
P2.5/P3.076/P4
Pixel pitch(mm): P12/P4
P2.2/P2.5
Pixel pitch(mm): P1.5/P1.667/P1.875/P2.5
Pixel pitch(mm): P3

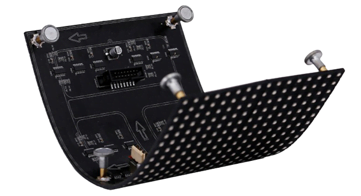

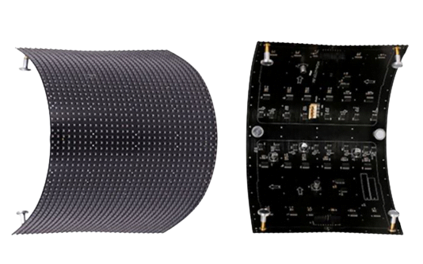

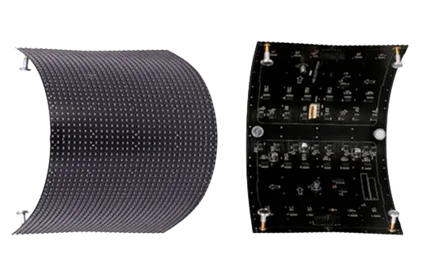

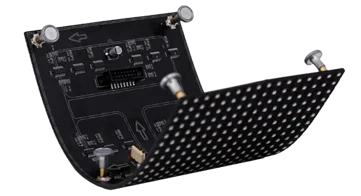

Indoor Flexible Module Specification

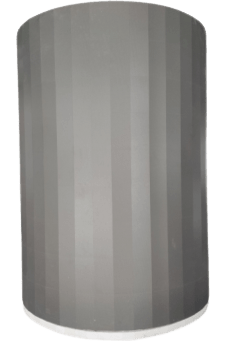

Flexible Module LED Display products are light, thin, flexible, and can be bent at will. The Bending angle of the whole Screen can be customized at will, such as cylindrical, Wavy, and curved Screens with various irregular shapes.
Flexible Display Module could make an LED screen as big as possible without any size limitation.
- Easy Installation and Disassembly
- Small Size & Light Weight
- Easy Modeling
- Magnetically Fixed or Screwed
Quick Installation: The cabinet signal line and power line are connected by a quick-connecting connector, which is convenient, quick to install, and simple to operate.
- Can be used with a professional audio processing system.
- High-performance IC driver chip, stable quality, and long service life.
Low Power Consumption: In a dynamic graded power supply, the luminous flux is more than twice that of traditional, only equivalent to the consumption of an electric bulb.
SPECIFICATION
Panel Size:(240mm*120mm),(320mm*160mm)
Pixel Pitch:2mm,3mm,5mm
Product name:flexible led display module
LED configuration:SMD1515
Screen Dimension:Customised
Warranty:2 Years
Lifespan:100,000 hours
Pixel density:250000dots/m2
Drive method:1/30 scan
Installation Process
Flexible Module
Structure
Installation
Desired Result
Flexible Module
Structure
Desired Result
Flexible Module
Structure
Installation
Desired Result
Indoor LED Screen Maintenace
There are two types of maintenances in general: front maintenance and back maintenance.
Indoor LED Display Front Maintenance
We must keep in mind during Indoor Installation, that there must be congested space, as a result, wall-mounted or roof installation is preferred, hence it is not possible to disassemble it every time for maintenance. Therefore Screen must have front access maintenance.

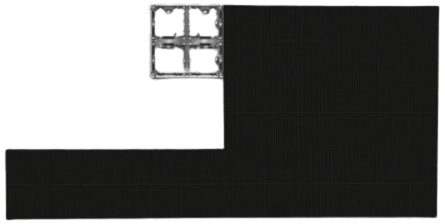

Indoor LED Display Rear Maintenance
For rear Maintenance of the LED Display Screen, there must be enough space from the back side to access the SCreen Internal parts, which is the most common one and work perfectly for Indoor LED Screen Displays. This sort of maintenance is more efficient and simple. It is usually easier for employees to reach and maintain large LED displays located on the exterior of the building from the backside
Technical Parameters
| Pixel Pitch | 1.25 mm | 1.5625 mm | 1.8 mm | 2.0 mm | 2.5mm | 3mm | 4 mm |
|---|---|---|---|---|---|---|---|
| Pixel Structure | 1R1G1B SMD | 1R1G1B SMD | 1R1G1B SMD | 1R1G1BSMD | SMD2020 | 1R1G1B SMD | 1R1G1B SMD2020 |
| Pixel Density | 640000/m² | 409600/m² | 289050/m² | 250000/m² | 160000/m² | 111111/m² | 62500/m² |
| Module Resolution | 160(W)*120(H)dots | 128(W)*96(H)dots | 172(W)*86(H)dots | 64(W)*64(H)dots | 64(W)*64(H) | 64(W)*64(H)dots | 80(W)*40(H)dots |
| Module Size（WXH） | 200mm*150mm | 200mm*150mm | 320mm*160mm | 256mm*128mm | 160mm*160mm | 192mm*192mm | 320mm*160mm |
| White Balance Brightness | 800-1000cd/m² | 800-1000cd/m² | 800-1000cd/m² | 800-1000cd/m² | 800-1000cd/m² | 800-1000cd/m² | 800-1000cd/m² |
| Color Temperature | 2000K—12500K | 2000K—12500K | 2000K—12500K | 2000K—12500K | 2000K—12500K | 2000K—12500K | 2000K—12500K |
| Horizontal Viewing Angle | ≥160° | ≥160° | ≥160° | ≥160° | ≥160° | ≥160° | ≥160° |
| Vertical Viewing Angle | ≥140° | ≥140° | ≥140° | ≥140° | ≥140° | ≥140° | ≥140° |
| Optimal Viewing Distance | ≥1 m | ≥1 m | ≥1 m | ≥2 m | ≥2.5 m | ≥3 m | ≥4 meters |
| Contrast | ≥5000:1 | ≥5000:1 | ≥5000:1 | ≥5000:1 | ≥5000:1 | ≥5000:1 | ≥5000:1 |
| Grayscale | 12-14Bit | 12-14Bit | 12-14Bit | 12-14Bit | 12-14Bit | 12-14Bit | 12-14Bit |
| Refresh Rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| Continuous Working Time | ≥72H | ≥72H | ≥72H | ≥72H | ≥72H | ≥72H | ≥72H |
| Life Span | 100000 H | 100000 H | 100，000 H | 100000 H | 100000 H | 100000 H | 100，000 H |
| Operating Voltage | DC 4.2-5V | DC 4.2-5V | DC 4.2-5V | DC 4.2-5V | DC 4.2-5V | DC 4.2-5V | DC 4.2-5V |
| Maximum Power Consumption | 700W/m² | 700W/m² | 700W/m² | 700W/m² | 700W/m² | 700W/m² | 700W/m² |
| Average Power Consumption | 260W/m² | 260W/m² | 260W/m² | 260W/m² | 260W/m² | 260W/m² | 260W/m² |
| WiFi controller | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Lifetime | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours |
| Grey Level | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Operating Humidity | -10 ºC to +50 ºC | -10 ºC to +50 ºC | -10 ºC to +50 ºC | -10 ºC to +50 ºC | -10 ºC to +50 ºC | -10 ºC to +50 ºC | -10 ºC to +50 ºC |
| Approval | CE, Rohs, FCC | CE, Rohs, FCC | CE, Rohs, FCC | CE, Rohs, FCC | CE, Rohs, FCC | CE, Rohs, FCC | CE, Rohs, FCC |
| Protection grade (Front/Rear) | IP43 | IP43 | IP43 | IP65 | IP43 | IP43 | IP65 |
